Details

    Tube for oil exploration can be divided into wellhead component, spiral drill, drill stem, drill collar, hanger, etc as per their different applications. With its high requirements for the uniform size, high cleanness of the steel and uniform heat treatment performance, it is widely used in the oil exploration industry.
    Xinyegang can provide tubes for this area in various conditions such as hot rolled, annealed, normalized, Q+T, cold drawn &Q+T.

Products used in O&G industry

Use  for

Main grade

machining

tools

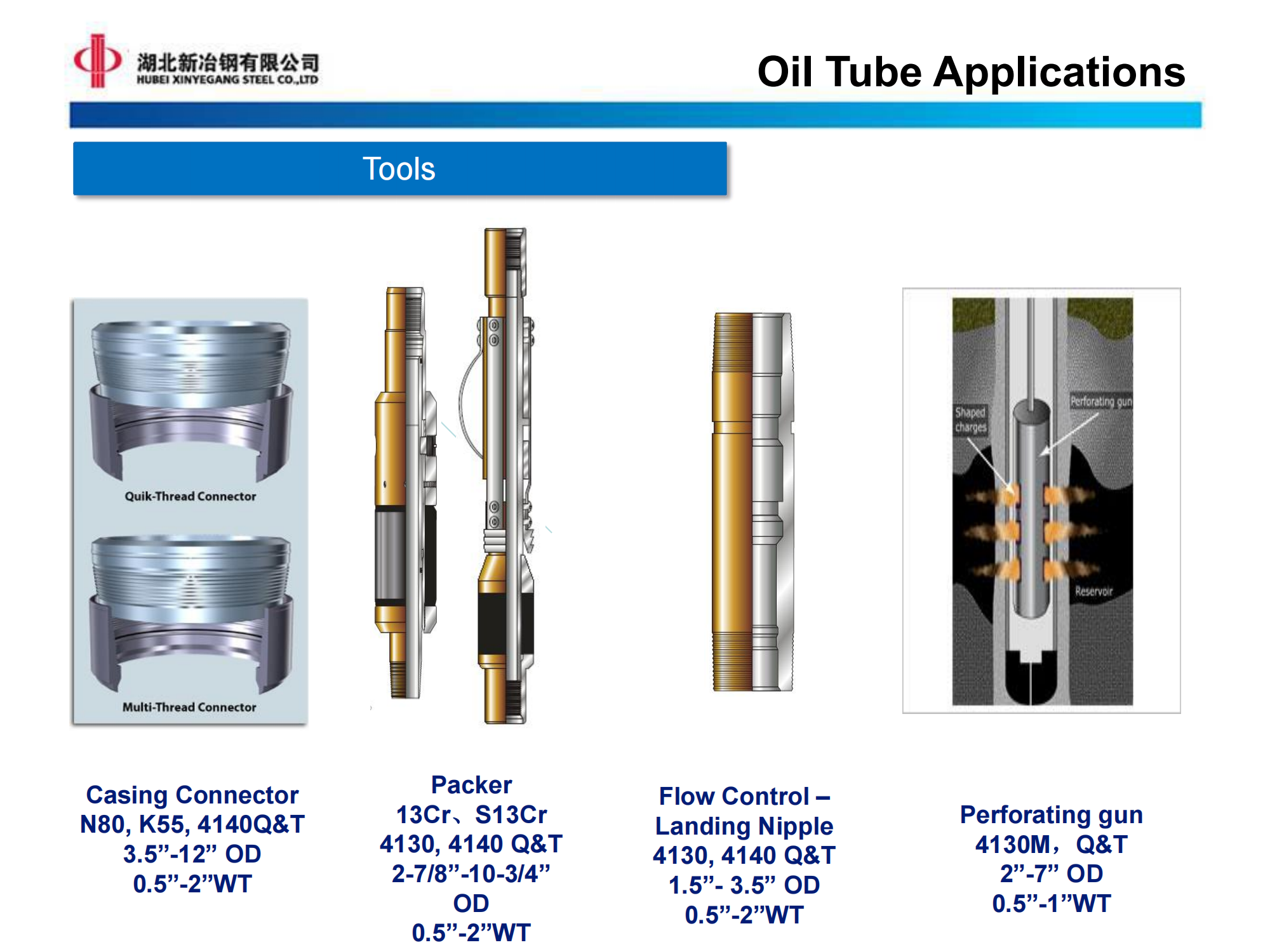

4140 80KSI、4140 125KSI、42CrMo、110SS4130M 125KSI

13Cr 80KSIS13Cr 110KSI4330VMOD 153KSI

Fracking

4130 80KSI、30CrMo4130 110KSIAISI471517-4PH15-5PH4330VM

Perforating gun

4130M 135KSI、4130M 145KSI

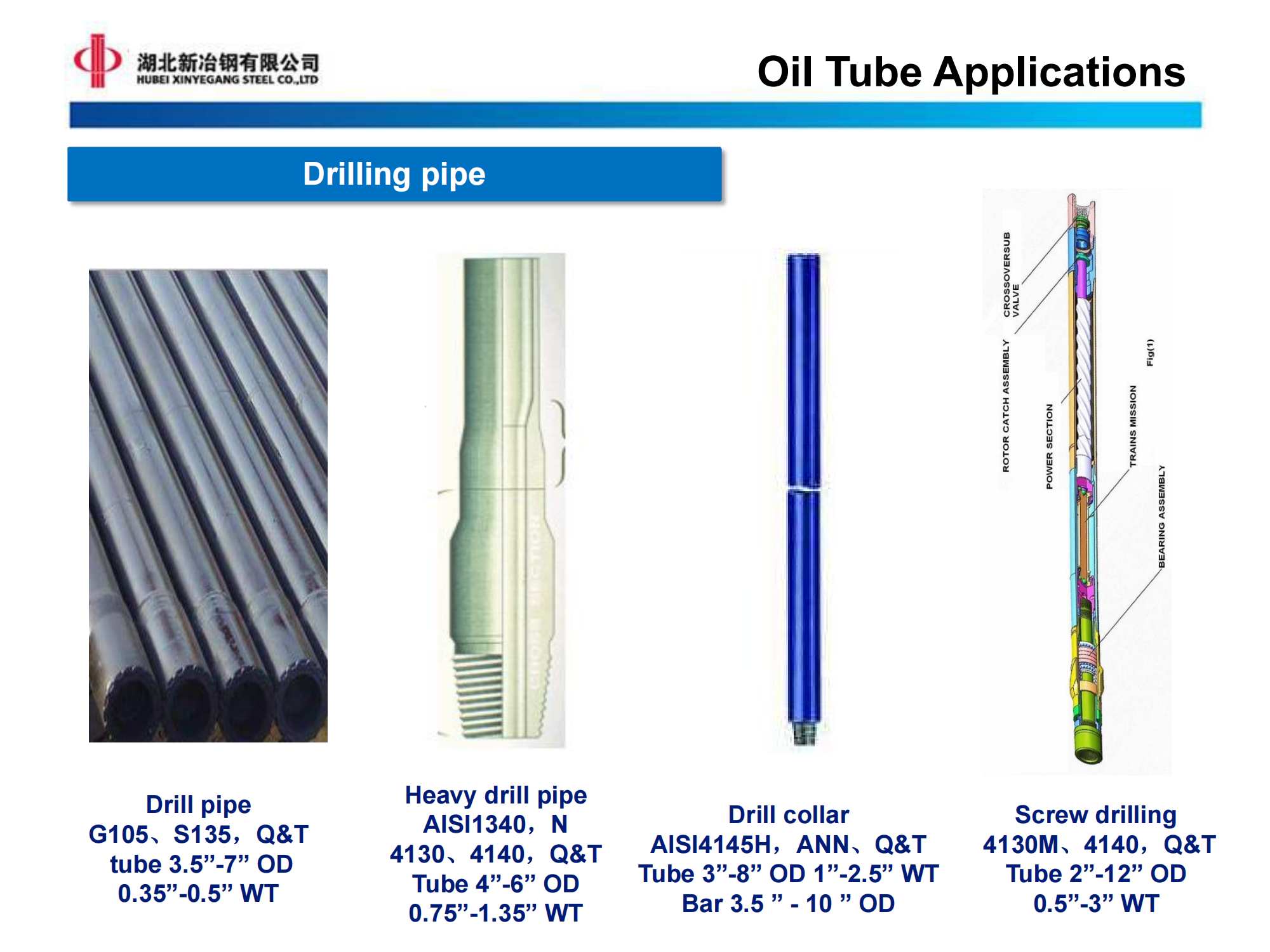

drilling

Heavy drill pipe

AISI1340、4130 75KSI90SS

Drilling collar

AISI4145H

Screw drilling

4140 125KSI、4140 135KSI、42CrMo

joint

AISI4137、AISI4145H110S

Drilling pipe

G105、S135、SS105、V140、V150

OCTG

Casing and tubing

J55、N80、L80、P110、Q125、L80-13Cr、T95、C110、V140、V150

coupling

J55、N80、L80、P110、Q125、L80-13Cr、T95、C110、V140、V150

Line pipe

B、X52N、X65Q、X80Q、X52NS、X70QS、X100QO

Off shore

platform leg

X52N、X80Q、X100Q

C&K system

4130 80KSi
